High Security RFID Cable Seal – NFC & HF/UHF RFID Wire Seal for Containers, Trailers & Cargo
1. Introduction: Smart RFID Cable Seal for Supply Chain Security
In international logistics and cargo transportation, container seals are vital to ensure tamper evidence, cargo integrity, and customs compliance. The High Security RFID Cable Seal combines a mechanical pull-tight wire seal with embedded RFID technology (NFC, HF, or UHF), offering both physical protection and digital tracking.
With its durable metal locking body and RFID-enabled chip, it allows fast electronic verification, real-time tracking, and secure lifecycle monitoring, making it ideal for containers, trailers, trucks, and high-value cargo shipments.
2. What is an RFID Cable Seal?
An RFID cable seal is a one-time-use, tamper-proof locking device with an integrated RFID chip. It provides:
-
Physical sealing with a steel cable that cannot be removed without cutting.
-
Unique RFID ID for electronic verification.
-
Compliance with ISO 17712 high-security standards (optional).
This makes it indispensable for logistics providers, customs authorities, and cargo owners who need to ensure traceability and security.
3. Key Features
-
Tamper-Proof Design
-
Pull-tight steel cable, must be cut to remove.
-
Provides visible and digital tamper evidence.
-
-
Multi-Frequency Options
-
Available in NFC/HF (13.56MHz) and UHF (860–960MHz).
-
Compatible with ISO14443A, ISO15693, and ISO18000-6C standards.
-
-
Durable & Secure Build
-
Steel cable with high-strength metal/ABS housing.
-
Resistant to weather, corrosion, and mechanical stress.
-
-
Writable & Customizable RFID
-
Memory can store container ID, shipment info, or user data.
-
Custom printing with logo, serials, or barcodes.
-
-
Fast Electronic Verification
-
RFID scanning speeds up customs clearance and logistics checkpoints.
-
Bulk scanning supported for UHF version.
-
4. Technical Specifications
| Parameter | Details |
|---|---|
| Frequency Options | NFC/HF (13.56MHz), UHF (860–960MHz) |
| Protocols | ISO14443A, ISO15693, ISO18000-6C / EPC Gen2 |
| Material | Steel cable + ABS/metal housing |
| Cable Diameter | 3–5 mm (customizable) |
| Read Range | HF/NFC: 2–10 cm; UHF: 3–6 meters |
| Writable Memory | EPC/User memory options |
| Operating Temp | -40°C to +85°C |
| Applications | Containers, trailers, trucks, high-value cargo, customs & logistics |
5. Advantages Over Standard Cable Seals
-
Dual-layer security: physical lock + RFID digital tracking.
-
Tamper-proof: seal must be cut, leaving visible evidence.
-
Multi-frequency flexibility: NFC/HF for close-range, UHF for long-range.
-
Writable memory: adds shipment or cargo data for better traceability.
-
Compliance-ready: supports customs and port security requirements.

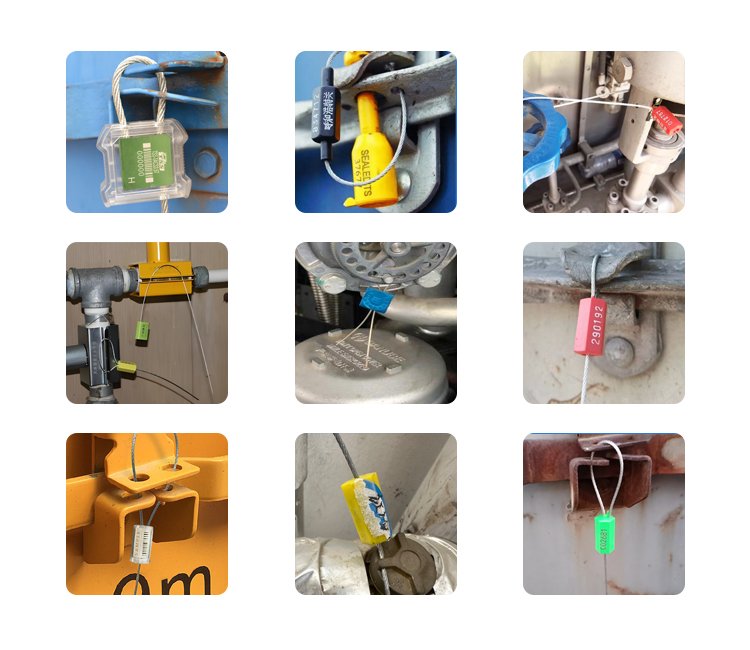

6. Applications
-
International Shipping – cargo containers, sea freight.
-
Logistics & Transportation – trailers, trucks, rail cargo.
-
Air Freight – secure pallets and shipments.
-
Customs & Border Control – fast inspections with RFID readers.
-
High-Value Cargo – electronics, luxury goods, and pharmaceuticals.
7. Customization Options
-
Cable length and diameter.
-
Chip type (NFC/HF/UHF).
-
Logo, barcode, or QR code printing.
-
Pre-encoded EPC or blank memory.
-
Housing color customization.
8. Installation & Deployment
-
Insert cable through container latch or trailer lock hole.
-
Pull cable tight into lock body.
-
Record RFID unique ID into logistics system.
-
Scan at customs, warehouses, and delivery checkpoints.
9. Frequently Asked Questions (FAQ)
Q1: Can this seal be reused?
No, it is a single-use security seal.
Q2: What frequencies are available?
Both NFC/HF (close-range) and UHF (long-range).
Q3: Is it ISO17712 compliant?
Yes, high-security versions are available upon request.
Q4: Can I customize cable length?
Yes, lengths and diameters can be tailored.
Q5: Who typically uses RFID cable seals?
Shipping companies, customs, logistics providers, and high-value shippers.
10. Conclusion
The High Security RFID Cable Seal provides a robust, tamper-proof solution for protecting containers, trailers, and cargo. With steel cable strength, RFID-enabled tracking, and customization options, it ensures supply chain visibility, compliance, and cargo safety from origin to destination.
