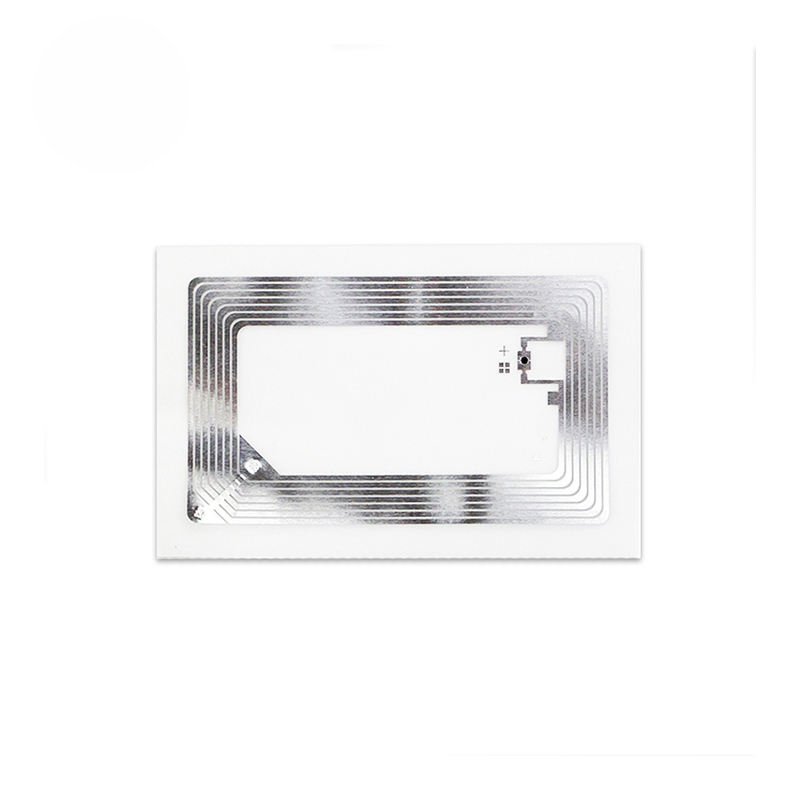

Factory Customized UHF RFID Inlay Sheet – Long Range Passive Prelaminated RFID Label Sticker with UHF Chip
Our long-range passive UHF RFID inlay sheets are designed for high-volume manufacturing of
RFID labels, tags, and smart stickers. Built with advanced UHF chip technology (860–960MHz),
these prelaminated RFID sheets deliver excellent reading distance, fast data transfer, and high stability
for logistics, warehouse management, retail, and industrial applications.
Application Scenarios
- Logistics & Supply Chain: RFID shipping labels, warehouse inventory tracking, pallet-level UHF inlays, logistics tags.
- Retail & Apparel: clothing RFID labels, anti-theft UHF tags, item-level inventory management, smart shelf labels.
- Asset & Equipment Tracking: IT asset management tags, medical equipment tracking, library RFID labels.
- Smart Packaging: RFID-enabled product labels, UHF package stickers, brand authentication solutions.
- Transportation & Tickets: RFID event tickets, long-range vehicle windshield labels, transit smart stickers.
Key Features
- Long Range Reading: Up to 6–10 meters (reader & environment dependent).
- High-Speed Data Transmission: EPC Gen2 V2 / ISO18000-6C compliant.
- Flexible Formats: Available as inlay sheets, roll labels, or pre-cut stickers.
- Durable Prelam Material: Waterproof, tear-resistant PET/PVC substrate for reliable converting.
- Custom Options: Antenna size, chip type (Impinj, Alien, NXP, etc.), encoding, serial/barcode printing.
Specifications
| Frequency Range | 860–960 MHz (UHF) |
|---|---|
| Protocol | EPC Global Class 1 Gen2 V2, ISO/IEC 18000-6C |

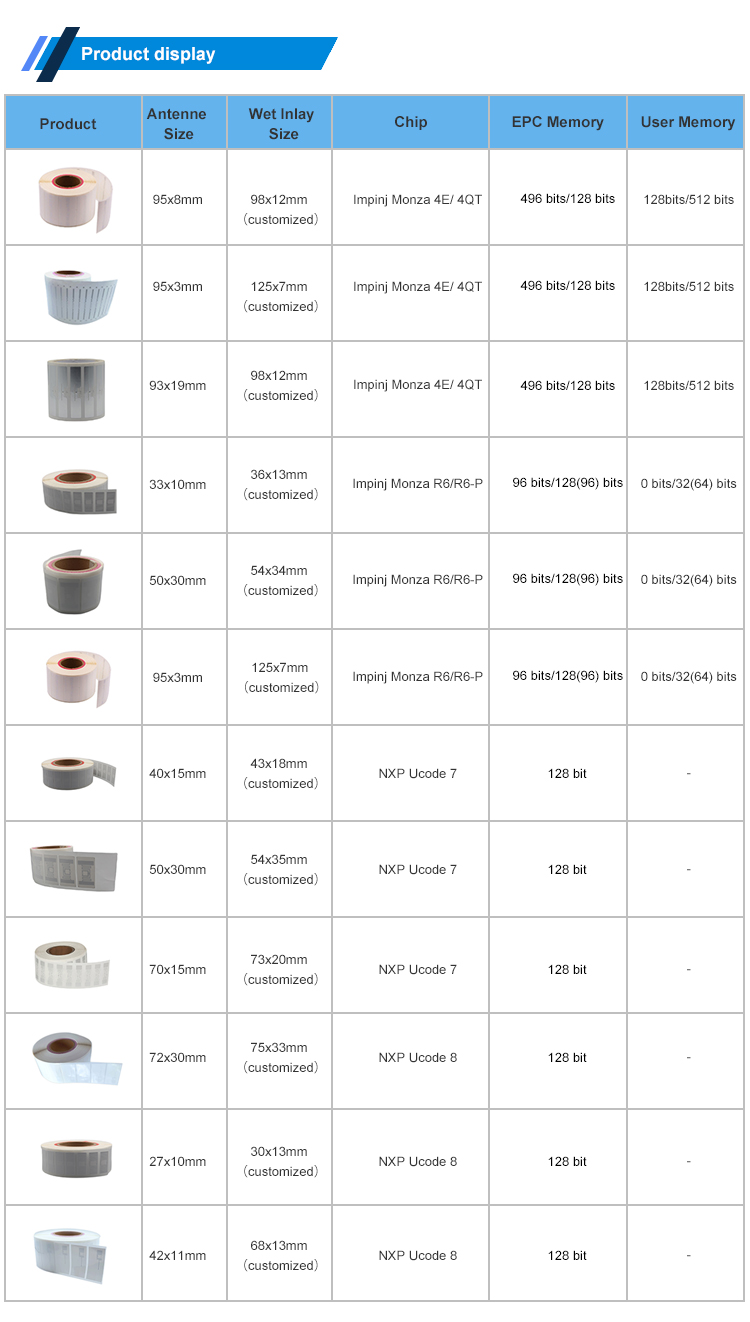

| Chip Options | Impinj Monza R6/R6-P, Alien H3, NXP UCODE 8/9 |

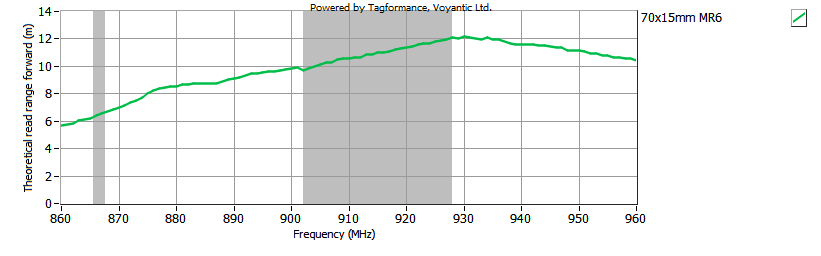

| Reading Distance | 6–10 m (depending on reader power & antenna design) |
| Material | PET / PVC prelam sheet, adhesive backing optional |
| Size | Customizable (antenna design & sheet layout on request) |
| Format | Inlay sheet, roll label, or die-cut sticker |
| Data Retention | 10 years (typ.), 100,000 write cycles |
| Operating Temp | -20°C to +70°C |
| Applications | Logistics, apparel, asset tracking, retail, smart packaging |
FAQ
Q1: What is the typical reading range of UHF RFID inlays?
A: Up to 6–10 meters depending on the reader, antenna design, and environment.
Q2: Can these inlay sheets be customized?
A: Yes. We support custom antenna design, chip type, sheet layout, and encoding options.
Q3: Are these UHF inlays suitable for retail apparel?
A: Absolutely. They are widely used in clothing item-level tagging and inventory control.
Q4: Can I order in roll format instead of sheets?
A: Yes. We supply inlay sheets, roll labels, or pre-cut stickers depending on your application.
Q5: Do you provide chip encoding and serial number printing?
A: Yes. Encoding, UID mapping, and printing (barcode/QR/serial) are all available.
