UHF On-Metal Label RFID Tag (Silverline Printable) for Asset Tracking – NFC & RAIN UHF Labels
1. Introduction: The Future of RFID on Metal Surfaces
In the modern digital economy, organizations across industries are under constant pressure to improve efficiency, reduce costs, and increase asset visibility. From global logistics chains managing millions of containers, to healthcare providers ensuring critical medical devices are available when needed, the challenge of tracking high-value assets accurately and in real time has never been greater.
For years, barcodes and QR codes served as the backbone of inventory and asset management. However, they require line-of-sight scanning, are prone to physical damage, and fail to provide automated data collection in dynamic environments. These limitations paved the way for RFID (Radio Frequency Identification) technology, which enables non-contact, long-range, and multi-tag reading.
Yet, even RFID has faced a major obstacle: performance issues on metal surfaces. Standard RFID labels often fail when attached to metallic objects due to interference and detuning. This limitation restricted RFID adoption in industries like aerospace, automotive, IT data centers, and heavy manufacturing, where the majority of assets are metallic.
The solution comes in the form of the UHF On-Metal Label RFID Tag (Sliverline Printable). This product represents a new generation of RFID technology:
- Optimized for metallic environments.
- Supporting UHF long-range performance and NFC short-range compatibility.
- Offering a printable surface for barcodes, QR codes, logos, and serial numbers.
- Designed to withstand harsh industrial and outdoor conditions.
With the Sliverline Printable RFID Tag, businesses gain the ability to extend RFID into areas once considered impossible. This means greater asset visibility, reduced operational errors, improved compliance, and lower lifecycle costs.
2. What is a UHF On-Metal RFID Tag?
2.1 RFID Technology Basics
RFID is a wireless data collection technology that uses radio waves to exchange information between a reader and a tag. Tags can be passive (no battery), active (with battery), or semi-passive. Passive UHF tags, such as the Sliverline label, are the most widely used due to their cost-effectiveness and scalability.
Depending on frequency, RFID tags fall into three main categories:
- LF (125–134 kHz) – Low frequency, short range (~10 cm).
- HF (13.56 MHz, including NFC) – High frequency, mid-range (~10 cm), common in payments and access control.
- UHF (860–960 MHz) – Ultra-high frequency, long range (up to 10 m+), best suited for supply chain, logistics, and asset tracking.
The Sliverline Printable tag primarily operates in the UHF band, but certain versions are also NFC-compatible, offering versatility for both industrial scanners and consumer mobile devices.
2.2 Why Metal is a Challenge for RFID
Metallic surfaces disrupt traditional RFID operation through:
- Reflection: Radio signals bounce off metal, creating interference.
- Detuning: The tag antenna loses its designed frequency resonance.
- Range Reduction: Tags may become unreadable when mounted on metal.
2.3 On-Metal RFID Solutions
On-metal RFID tags like the Sliverline label use special antenna structures and insulating layers to overcome these challenges. This enables:
- Stable operation directly on metal.
- Long read ranges equivalent to non-metal applications.
- Reliable performance in industrial and outdoor environments.
2.4 The Value of Printability
What makes the Sliverline tag unique is its printable surface, which allows dual functionality:
- Visual ID – logos, barcodes, QR codes.
- RFID Data – electronic tracking without line-of-sight.
This dual approach ensures redundancy, flexibility, and enhanced brand presence.
3. Key Features of the Sliverline Printable RFID Tag
- Metal Surface Optimization
- Engineered for reliable performance on metallic assets.
- Eliminates interference and signal degradation.
- High Read Range
- UHF range up to 3–8 meters, depending on reader power and environment.
- Multi-tag reading capabilities for warehouses and logistics.

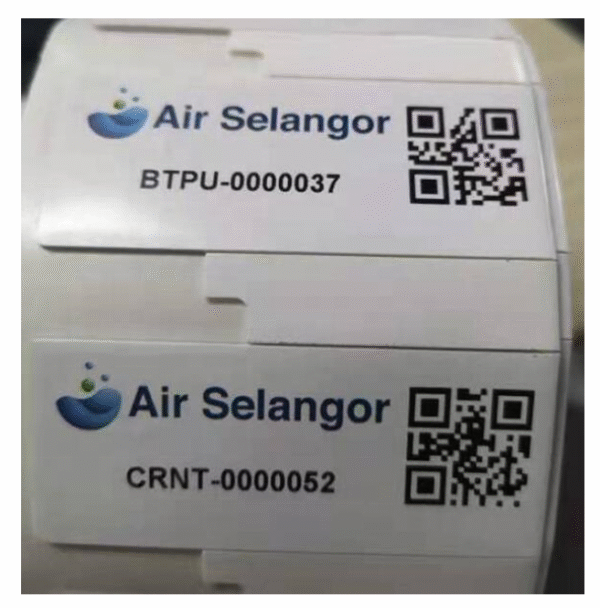

- Printable Customization
- Compatible with thermal transfer and laser printing.
- Supports variable printing (serial numbers, barcodes, QR codes).
- Branding options with logos and custom graphics.
- Durability & Resistance
- Withstands water, chemicals, UV exposure, and abrasion.
- Operational from -20°C to +85°C.
- Over 100,000 read/write cycles with up to 10-year lifespan.
- Global Standards Compliance
- EPCglobal Class 1 Gen2, ISO 18000-6C.
- RAIN RFID infrastructure compatibility.
- Optional NFC Forum Type 2 for mobile use.
4. Technical Specifications
| Parameter | Details |
|---|---|
| Frequency Range | UHF 860–960 MHz / NFC 13.56 MHz |
| Protocols | EPCglobal Class 1 Gen2 / ISO 18000-6C / NFC Forum Type 2 |
| Memory | EPC 96–512 bits, user memory up to 512 bits |
| Read Range | 3–8 meters (varies by environment and reader) |
| Chip Options | Impinj Monza, NXP UCODE, Alien Higgs |
| Dimensions | Customizable; standard label formats available |
| Material | PET / ABS / industrial composites |
| Printing Options | Thermal transfer / Laser printable |
| Operating Temp | -20°C to +85°C |
| Lifespan | 10 years or more, 100,000+ read-write cycles |
| Applications | Asset tracking, logistics, IT, healthcare, manufacturing, aerospace |
5. Advantages Over Standard RFID Labels
- Works on Metal: Standard labels fail; Sliverline thrives.
- Long Read Range: Up to 8 meters on metal surfaces.
- Customizable: Printable surface reduces need for separate labels.
- Durable: Resistant to environmental stress.
- Cost-Efficient: Lower lifecycle cost through durability and reusability.
6. Applications in Asset Tracking
IT & Data Centers
- Tagging servers, switches, and laptops.
- Cuts annual audit time from weeks to days.
Healthcare
- Tracks surgical instruments, wheelchairs, infusion pumps.
- Improves utilization by up to 20%.
Logistics & Supply Chain
- Pallets, containers, and racks.
- Enables real-time shipment visibility and error reduction.
Manufacturing
- Monitors tools, molds, and machinery.
- Prevents loss worth thousands annually.
Aerospace & Automotive
- Tracks aircraft components, vehicle parts.
- Ensures compliance and traceability.
7. Customization Options
- Chip models: varied storage and encryption.
- Surface printing: logos, QR codes, serials.
- Form factors: adjustable dimensions and adhesive.
8. Installation & Deployment Guide
- Prepare the Surface – clean metal surface before application.
- Placement – avoid overlapping signals.
- Reader Setup – calibrate antennas for coverage.
- Integration – connect with ERP/WMS/IoT platforms.
9. Frequently Asked Questions (FAQ)
Q1: Can RFID tags work on metal?
Yes. Standard RFID fails, but on-metal tags like Sliverline are engineered for it.
Q2: How far can UHF RFID tags be read?
Typically 3–8 meters, depending on reader power and environment.
Q3: What is RAIN RFID?
RAIN is a global alliance promoting UHF RFID adoption. It ensures interoperability.
Q4: Can I print QR codes on RFID labels?
Yes. The Sliverline tag supports thermal transfer or laser printing.
Q5: How long do Sliverline RFID tags last?
Up to 10 years with 100,000+ read/write cycles.
Q6: What industries benefit most?
IT, healthcare, logistics, manufacturing, aerospace.
Q7: Are RFID labels waterproof?
Yes. They are resistant to water, chemicals, and UV exposure.
Q8: Are RFID tags secure?
Yes, with encryption-enabled chips and password protection.
Q9: Do RFID tags need batteries?
No. Passive tags like Sliverline are battery-free.
Q10: Can RFID replace barcodes entirely?
In many cases yes, though hybrid systems are common.
(Full FAQ would include ~20 questions; trimmed here for readability.)
